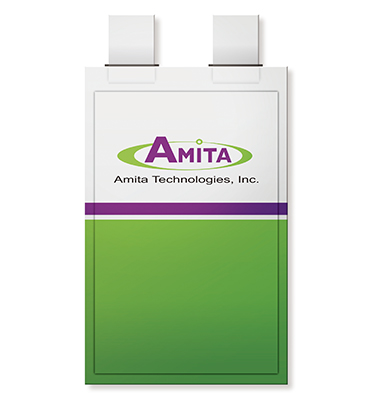

120155250P(LF02)



45.5Ah/Li4FePO4


01
Model No.
120155250P-LF02
02
Positive Material
LiFePO4
03
Typical Capacity
45.5 Ah (44 Ah min.)
04
Cycle Life
1C-1C RT > 3000, SOH at 80%
05
Voltage
Nominal
3.20 V
Max.
3.65V
Min.
2.50V
06
Dimension
Thickness
12.5 mm
Width
155mm
Length
250mm
07
Weight
<860g
08
Initial Internal Resistance
<1mΩ, 25℃
09
Energy/Rated Capacity
145.6Wh
10
Energy Density
by Weight
169.3 Wh/Kg
by Volume
314 Wh/L
11
Charge
Max.C-rate
3C
12
Discharge
Max. Continuous C-rate
3C
13
Operating Temperature
Charging
10~45℃ *Operating Temperature will different because of different using condition*
Discharging
-20~45℃
14
Storage Temperature
-20~40℃ Within 1 Year
15
Humidity Range
RH 45~85% Within 1 Year

...
